Total Light® 50 Piece Bulk Pack Boca Path Light 6 Inch Shade 18 Inch Stem
- Regular price
- $2,128.50
- Sale price
- $2,128.50
- Regular price
-
$0.00 - Unit price
- per
Product Overview
The Total Light 50-Piece Bulk Pack Boca Brass Path Light package provides a coordinated fixture option for larger landscape-lighting installations. Each Boca path light uses a compact 6-inch shade and an 18-inch stem to direct low-level illumination across walkways, garden paths, planting beds, patios, driveway borders, and other outdoor areas. Purchasing the fixtures as a 50-piece pack helps contractors, property managers, builders, and homeowners plan larger layouts with one consistent fixture style.

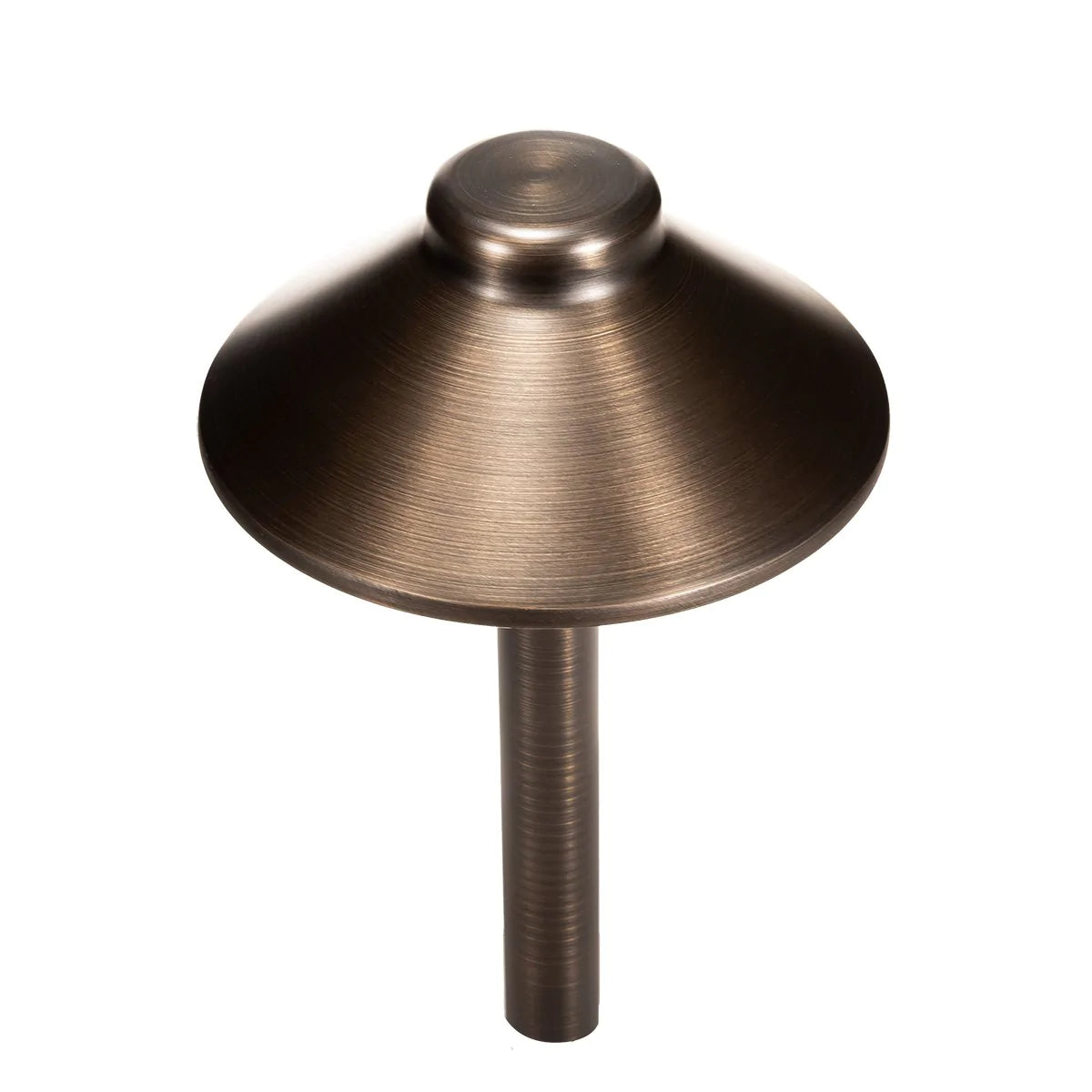

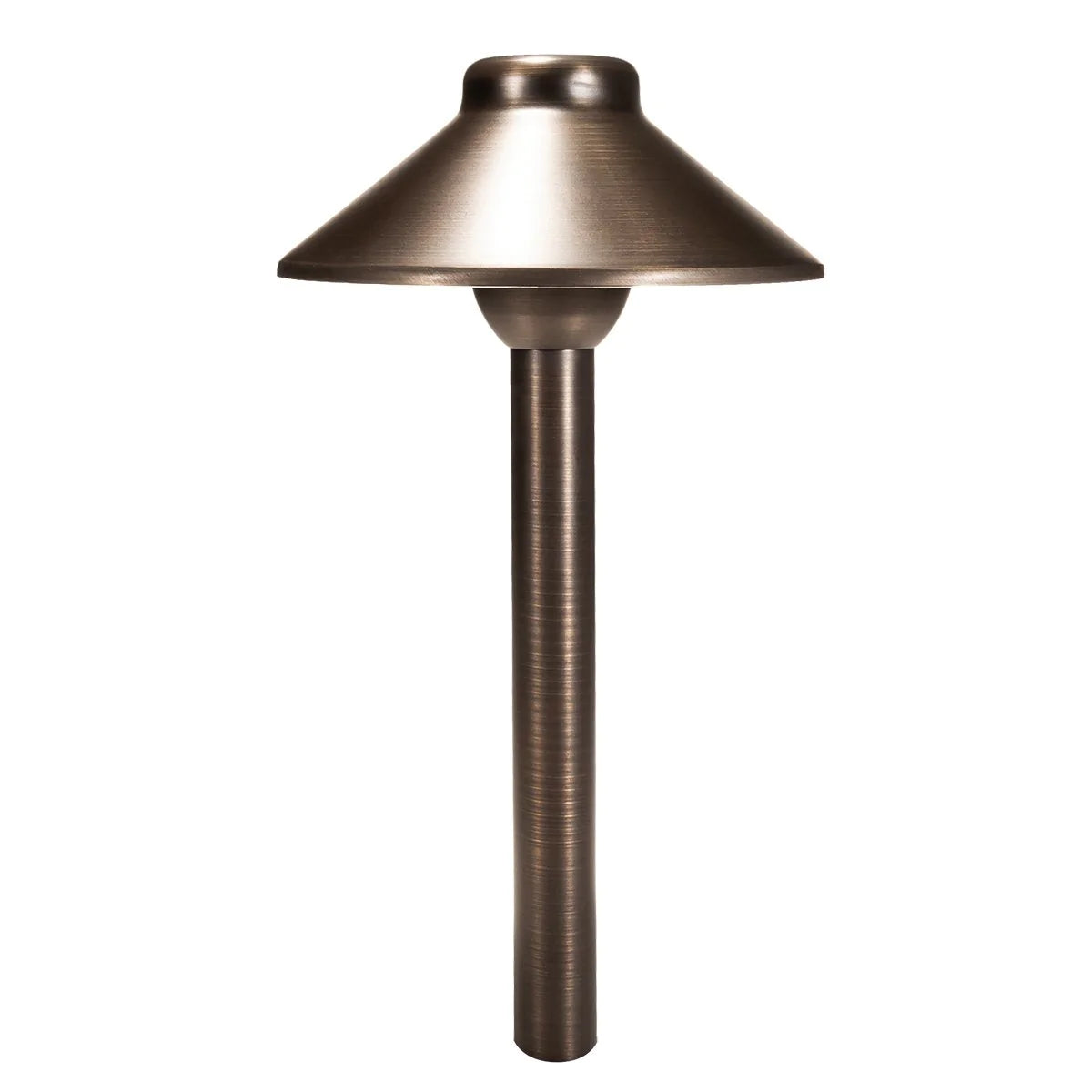

Each TL-PL-6-18-CB fixture is constructed from solid brass with a Classic Brass finish and operates as part of a 12-volt low-voltage landscape-lighting system. The covered lamp position directs illumination downward, while the included clear lens helps protect the lamp. A ground stake is supplied with each fixture for installation in soil or prepared landscape beds.
The Boca path light uses a replaceable G4 bi-pin lamp, sold separately. This allows the installer to select a compatible brightness and color temperature for the project instead of relying on a permanently integrated light source. Lamps, low-voltage cable, connectors, and the 12-volt transformer are not included. The transformer should be sized for the combined lamp wattage, wire length, and layout of the complete 50-fixture system.
Key Features
- 50-fixture bulk package: Supports larger residential, commercial, builder, and contractor landscape-lighting projects.
- Solid brass construction: Provides a substantial fixture body for outdoor landscape-lighting applications.

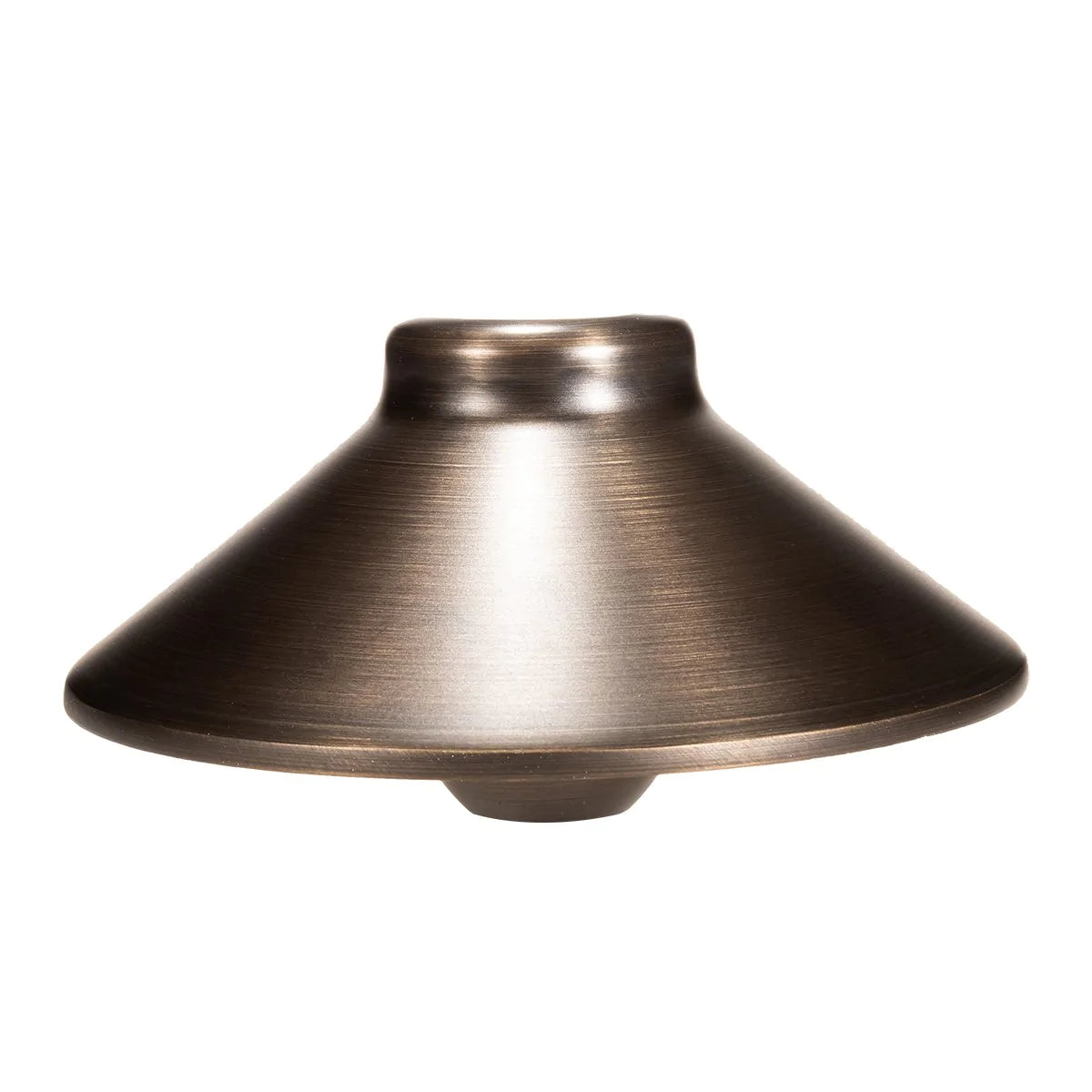

- Compact 6-inch shade: Directs illumination downward over paths, beds, and nearby landscape features.

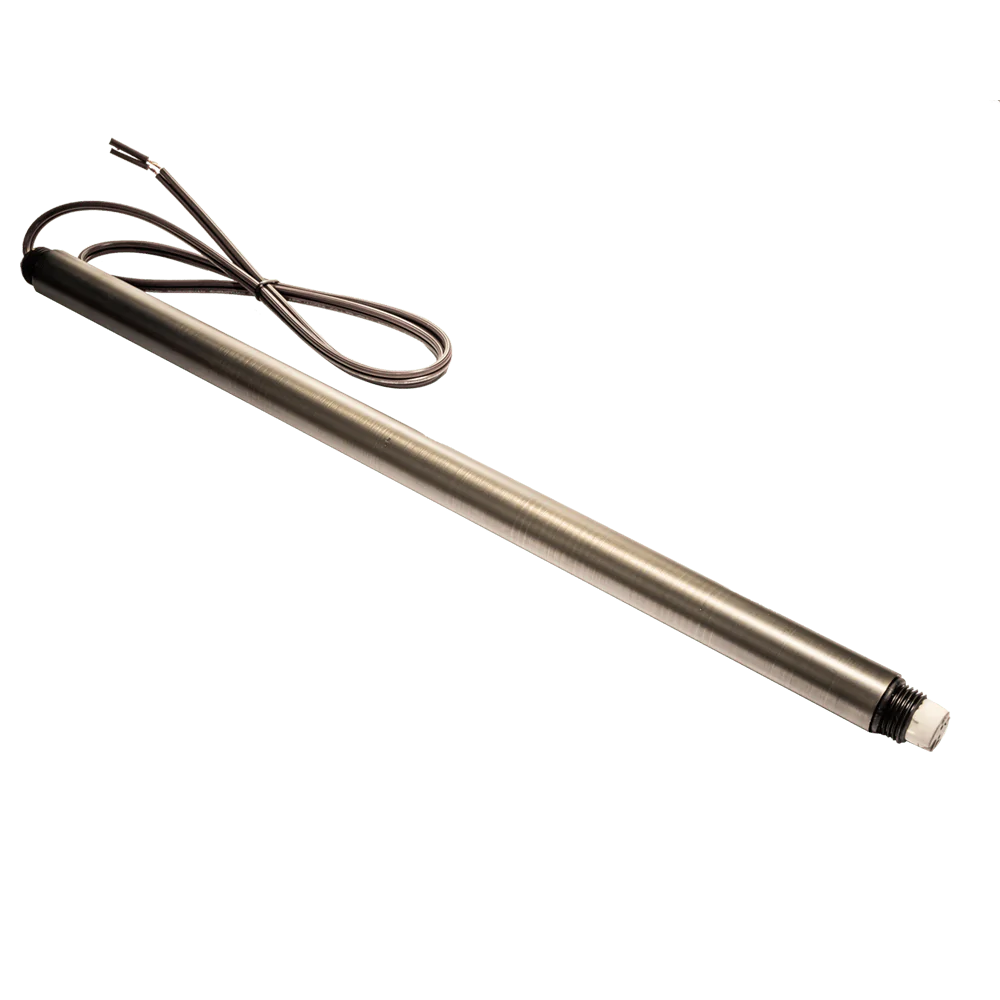

- 18-inch stem: Raises each shade above low plants and groundcover.
- Replaceable G4 lamps: Allows compatible brightness and color temperature options to be selected separately.
- Ground stakes included: Each fixture includes a stake for installation in soil and landscaped areas.
Common Uses
- Large residential landscape-lighting layouts
- Commercial walkways and property borders
- Builder and contractor lighting packages
- Multi-zone garden and planting-bed installations
- Driveway, patio, and entry approaches
- Hospitality, community, and managed-property landscapes
Technical Specifications
- Bulk-Pack SKU: TL-PL-6-18-CB-50
- Single-Fixture Model: TL-PL-6-18-CB
- Quantity: 50 path-light fixtures
- Fixture Type: Low-voltage landscape path light
- Operating Voltage: 12 volts
- Material: Solid brass
- Finish: Classic Brass
- Shade Size: 6 inches nominal per fixture
- Stem Length: 18 inches nominal per fixture

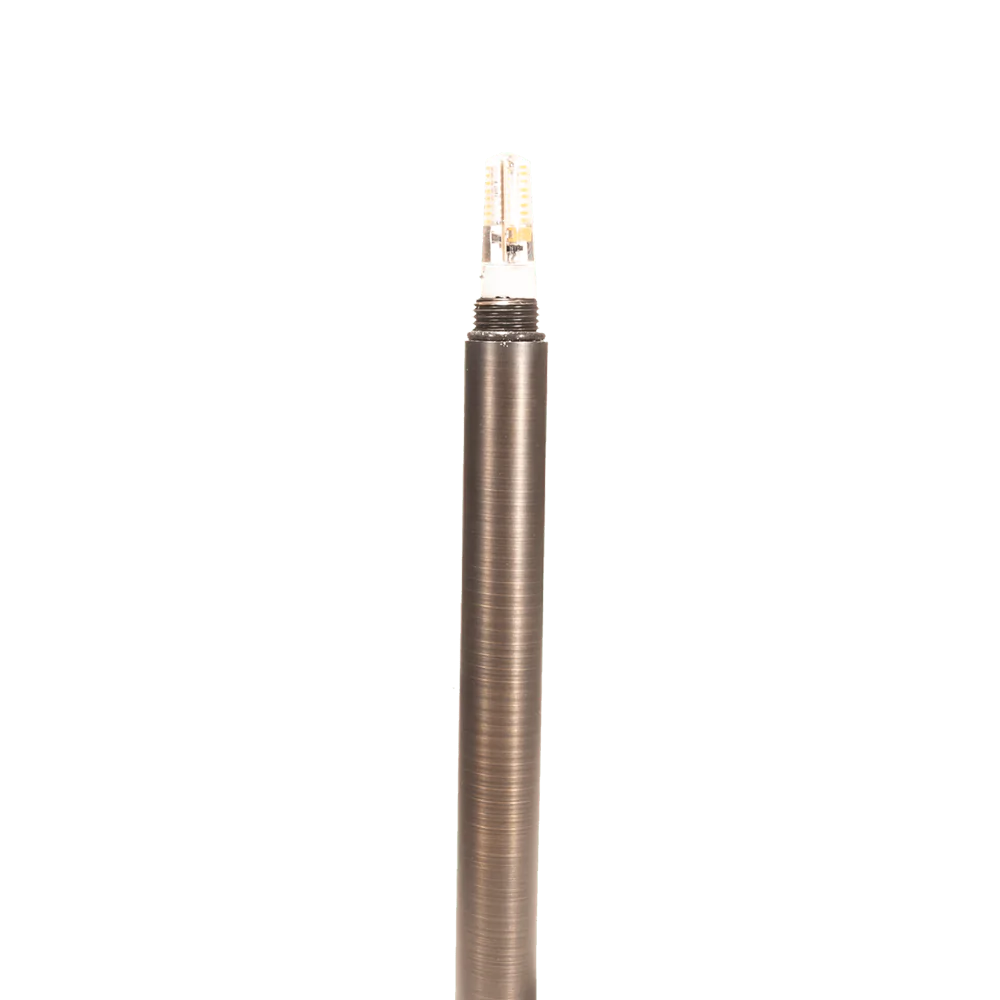

- Lamp Type: G4 bi-pin lamp, sold separately
- Lens: Clear lens included with each fixture

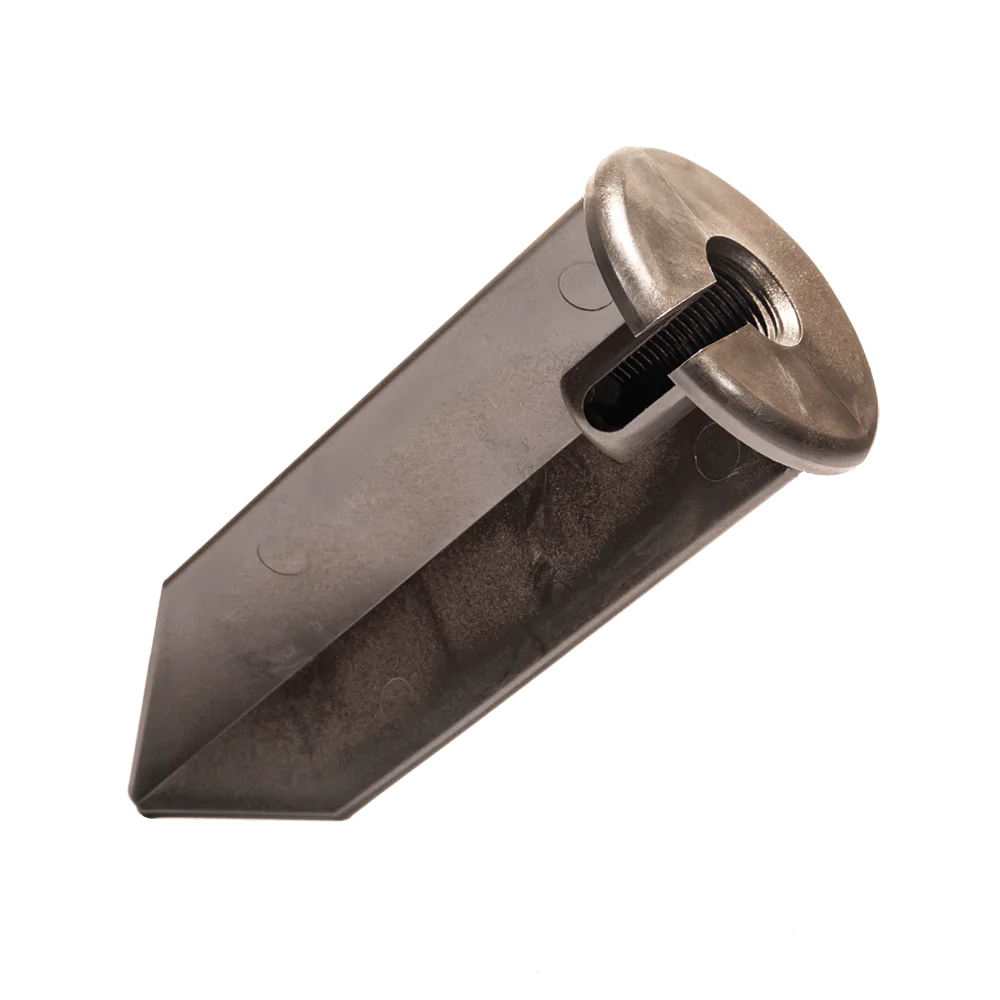

- Mounting: Ground stake included with each fixture
- Power Supply: Compatible 12-volt low-voltage transformer, sold separately
- Certification: ETL
- Residential Warranty: Lifetime
- Commercial Warranty: Lifetime
Dimensions
- Shade Size: 6 inches nominal per fixture
- Stem Length: 18 inches nominal per fixture
Refer to the linked specification sheet below for the single-fixture drawing and additional dimensional details.
Lamp and System Compatibility
Each fixture requires one compatible 12-volt G4 bi-pin lamp. Total Light TL-G4-2.5W-27 and TL-G4-2.5W-30 lamps are available separately. A properly sized low-voltage transformer, cable, and connectors are also required for the complete system.
Installation and Planning Notes
- Plan fixture spacing and cable routes before installing the complete 50-light layout.
- Install each included ground stake in stable soil or a prepared landscape bed.
- Select compatible G4 lamps with the desired brightness and color temperature.
- Calculate the combined lamp wattage before selecting the transformer.
- Account for cable length and voltage drop when dividing a larger project into lighting runs or zones.
- Follow the instructions supplied with the transformer, cable, connectors, and lamps.
What Is Included?
- 50 TL-PL-6-18-CB Boca path-light fixtures
- 50 solid brass 6-inch shades
- 50 18-inch stems
- 50 clear lenses
- 50 ground stakes
Not included: G4 lamps, low-voltage transformer, landscape-lighting cable, and wire connectors.
View the single TL-PL-6-18-CB Boca path light
Product Specification Sheet
Open the TL-PL-6-18-CB specification sheet for the individual fixture drawing and additional product details.
View the TL-PL-6-18-CB specification sheet
Frequently Asked Questions
How many path lights are included in TL-PL-6-18-CB-50?
This bulk package contains 50 Total Light Boca path-light fixtures with 6-inch shades, 18-inch stems, clear lenses, and ground stakes.
Are the G4 lamps included?
No. Each fixture requires a compatible 12-volt G4 bi-pin lamp, sold separately. This allows the project brightness and color temperature to be selected separately.
What transformer is needed for a 50-light system?
The transformer must be sized for the combined wattage of all installed lamps, along with the cable length and layout of the lighting runs. Larger projects may be divided into multiple runs or zones.
Can I purchase one Boca fixture instead of the bulk pack?
Yes. The individual TL-PL-6-18-CB Boca path light is available separately for smaller projects, replacements, or additions to an existing system.
Why Choose the 50-Piece Boca Bulk Pack?
The TL-PL-6-18-CB-50 package provides 50 matching solid brass path lights for projects that require consistent fixture sizing, finish, lamp compatibility, and installation hardware across a larger landscape-lighting layout.
