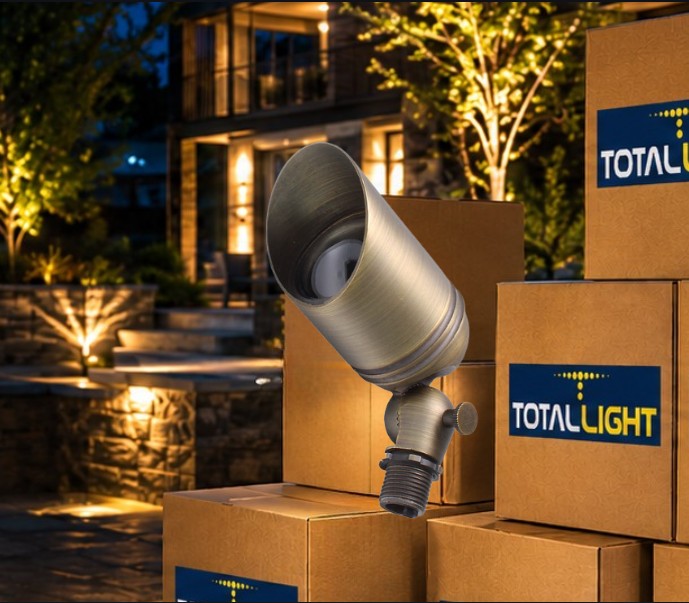

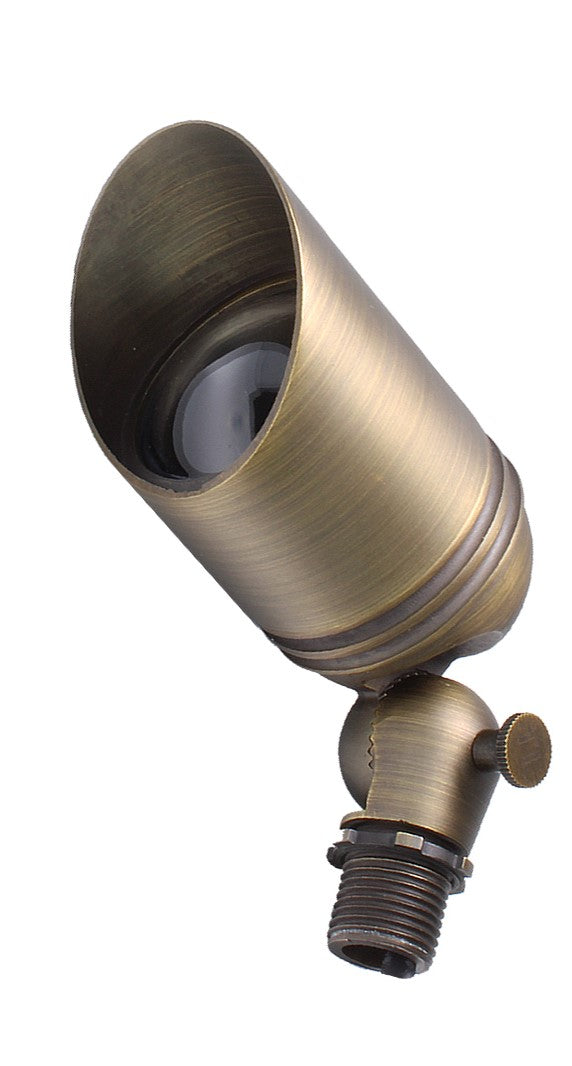

Total Light® 50 Piece Bulk Pack Magnolia Classic Brass Spotlight

Product Overview

The Total Light 50-Piece Bulk Pack Magnolia Classic Brass Spotlight package provides a coordinated fixture option for larger low-voltage landscape-lighting projects. Each Magnolia fixture uses the distinctive rounded housing of the individual TL-UL400-CB spotlight and can be aimed to illuminate trees, stonework, architectural details, signs, sculptures, planting areas, and other outdoor focal points. The 50-fixture package is suited to contractors, builders, property managers, hospitality sites, communities, and homeowners planning a larger installation with one consistent fixture style and finish.

Each Magnolia spotlight is constructed from solid brass with a Classic Brass finish and operates as part of a properly planned 12-volt landscape-lighting system. A ground stake is included with every fixture for placement in suitable soil or prepared landscape beds. The fixtures are ETL certified and carry Total Light lifetime residential and commercial warranties.

The Magnolia uses a replaceable MR16 lamp, sold separately. This allows the installer to select compatible brightness, color temperature, and beam-spread options for different areas of the project instead of relying on permanently integrated light sources. Narrower beams can create focused accents on columns, tree trunks, or signs, while wider compatible beams can illuminate broader planting areas and textured surfaces. Lamps, transformer, main low-voltage cable, and wire connectors are not included. The transformer and cable layout should be planned around the combined lamp wattage, run lengths, voltage drop, and number of fixtures assigned to each lighting zone.

Key Features

• 50-fixture bulk package: Supports larger residential, commercial, builder, contractor, and managed-property lighting projects.
• Solid-brass construction: Provides a substantial fixture body for outdoor landscape-lighting layouts.
• Classic Brass finish: Creates a consistent appearance across the complete 50-light installation.
• Distinct rounded housing: Gives each Magnolia spotlight its recognizable fixture profile.
• Replaceable MR16 lamps: Allow compatible brightness, color temperature, and beam-spread options to be selected separately.
• Directional accent lighting: Supports focused illumination of landscape and architectural features.
• 12-volt operation: Designed for a compatible low-voltage landscape-lighting system.
• Ground stakes included: Each fixture includes a stake for installation in suitable soil or prepared landscape beds.

Common Uses

• Large residential landscape-lighting layouts
• Commercial properties and hospitality landscapes
• Builder and contractor lighting packages
• Community entrances and managed outdoor areas
• Tree, column, facade, and stonework uplighting
• Signs, sculptures, planting beds, and outdoor focal points

Technical Specifications

• Bulk-Pack SKU: TL-UL400-CB-50
• Single-Fixture Model: TL-UL400-CB
• Product Name: 50-Piece Bulk Pack Magnolia Classic Brass Spotlight
• Quantity: 50 spotlight fixtures
• Fixture Type: Landscape uplight / spotlight
• Operating Voltage: 12 volts
• Material: Solid brass
• Finish: Classic Brass
• Color: Classic Brass
• Lamp Type: MR16
• Socket: MR16 bi-pin compatible
• Lamps Included: No
• Ground Stakes: Included
• Transformer: Required and sold separately
• Certification: ETL
• Residential Warranty: Lifetime
• Commercial Warranty: Lifetime

Lamp and System Compatibility

Each TL-UL400-CB fixture accepts one compatible MR16 bi-pin lamp. Select lamps according to the brightness, color temperature, and beam spread needed for each feature. The complete installation requires one or more properly sized 12-volt landscape-lighting transformers, approved low-voltage cable, and suitable wire connectors.

View compatible Total Light MR16 LED lamps

Installation and Project Planning

• Plan fixture placement, aiming direction, cable routes, and lighting zones before installation.
• Install each included ground stake in stable soil or a prepared landscape bed.
• Select compatible MR16 lamps based on the desired beam spread and light output.
• Calculate the combined lamp wattage before selecting the transformer or transformers.
• Account for cable length and voltage drop when dividing the 50 fixtures into runs or zones.
• Use approved low-voltage landscape-lighting cable and connectors.
• Follow the instructions supplied with the fixtures, lamps, transformers, and connection hardware.

What Is Included?

• 50 Total Light TL-UL400-CB Magnolia cast brass spotlights
• 50 ground stakes

Not included: MR16 lamps, 12-volt transformer or transformers, main landscape-lighting cable, and wire connectors.

View the individual TL-UL400-CB Magnolia spotlight

Product Specification Sheet

Open the TL-UL400-CB specification sheet for the individual fixture drawing, dimensions, and additional product details.

View the TL-UL400-CB specification sheet

Frequently Asked Questions

How many Magnolia spotlights are included?

This bulk package contains 50 Total Light TL-UL400-CB Magnolia solid-brass spotlights and 50 ground stakes.

Are MR16 lamps included?

No. Each fixture requires one compatible MR16 bi-pin lamp, sold separately. This allows the brightness, color temperature, and beam spread to be selected for the project.

What transformer is needed for a 50-light system?

The transformer capacity depends on the combined wattage of the selected lamps, cable lengths, voltage drop, and how the fixtures are divided into lighting runs or zones. A larger project may require more than one transformer.

Can the Magnolia spotlight be purchased individually?

Yes. The individual TL-UL400-CB Magnolia spotlight is available separately for smaller projects, replacements, and additions to an existing system.

Why Choose the 50-Piece Magnolia Bulk Pack?

The TL-UL400-CB-50 package supplies 50 matching solid-brass spotlights for projects that require consistent fixture construction, finish, MR16 lamp compatibility, and installation hardware across a larger low-voltage landscape-lighting layout.
