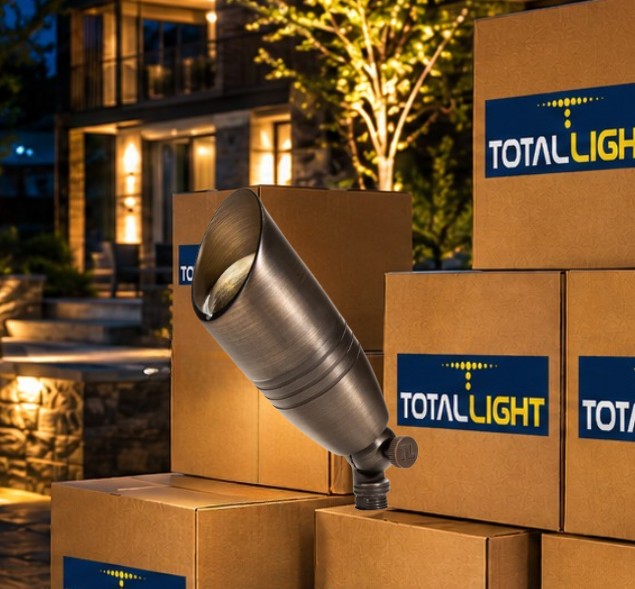

Total Light® 50 Piece Pack Total Light Old Faithful Brass Up Light

Product Overview

The Total Light 50-Piece Old Faithful Classic Brass Spotlight Pack provides a coordinated fixture package for larger residential, commercial, builder, and contractor landscape-lighting projects. Each spotlight is designed for directional illumination and can be aimed toward trees, shrubs, stonework, columns, walls, signs, building details, and other features that benefit from focused light. Purchasing the fixtures as a 50-piece pack helps maintain a consistent fixture style across larger properties and multi-zone lighting layouts.

Each TL-UL200-CB fixture is constructed from solid brass with a Classic Brass finish and operates as part of a 12-volt low-voltage landscape-lighting system. The fixtures use replaceable MR16 bi-pin lamps, sold separately, allowing the installer to choose the brightness, color temperature, and beam spread for different features throughout the same project. This makes it possible to use narrower or wider beams while keeping one consistent fixture body across the installation.

The package includes 50 Old Faithful spotlights and 50 TL-GSTAKE2 ground stakes for installation in soil or prepared landscape beds. MR16 lamps, low-voltage cable, connectors, and the transformer are sold separately. For a complete 50-light layout, the transformer and cable plan should account for the combined lamp wattage, run length, fixture spacing, circuit design, and expected voltage drop.

Key Features

• 50-fixture bulk package: Supports larger residential, commercial, builder, and contractor projects.
• Directional spotlight design: Aims focused light toward landscape and architectural features.
• Solid brass construction: Provides a substantial fixture body for outdoor landscape-lighting installations.
• Classic Brass finish: Creates a consistent appearance throughout the complete 50-light layout.
• Replaceable MR16 lamps: Allows compatible output, color-temperature, and beam-spread options to be selected separately.
• Ground stakes included: Each fixture includes a TL-GSTAKE2 stake for installation in soil or prepared planting beds.

Common Uses

• Large residential landscape-lighting layouts
• Commercial property and hospitality installations
• Builder and contractor lighting packages
• Tree, shrub, and ornamental planting uplighting
• Stonework, columns, walls, and facade accents
• Signs, mailboxes, address markers, and property features

Technical Specifications

• Bulk-Pack SKU: TL-UL200-CB-50
• Single-Fixture Model: TL-UL200-CB
• Quantity: 50 spotlights
• Fixture Type: Low-voltage landscape spotlight / uplight
• Operating Voltage: 12 volts
• Material: Solid brass
• Finish: Classic Brass
• Color: Classic Brass
• Lamp Type: MR16 LED lamp, sold separately
• Socket: MR16 bi-pin
• Mounting: 50 TL-GSTAKE2 ground stakes included
• Power Supply: Compatible low-voltage transformer, sold separately
• Certification: ETL
• Single-Fixture UPC: 810016890058
• Residential Warranty: Lifetime
• Commercial Warranty: Lifetime

Dimensions

Refer to the linked specification sheet below for the individual fixture drawing and detailed dimensions.

Lamp and System Compatibility

Each fixture requires one compatible MR16 bi-pin lamp. Total Light MR16 LED lamps are available in multiple outputs, color temperatures, and beam spreads, allowing different lighting effects to be used throughout the same project.

• Available Total Light lamp wattages: 3W, 5W, and 7W
• Available color temperatures: 2700K and 3000K
• Available beam spreads: 40 degrees and 60 degrees

View compatible Total Light MR16 LED lamps

Installation and Project Planning

• Plan fixture locations, aiming directions, cable routes, and lighting zones before installation.
• Install each included TL-GSTAKE2 ground stake in stable soil or a prepared landscape bed.
• Select the MR16 lamp output and beam spread according to the size and distance of each target feature.
• Calculate the combined wattage of all installed lamps before selecting the transformer.
• Account for cable length and voltage drop when dividing a larger project into separate runs or zones.
• Follow the instructions supplied with the transformer, cable, connectors, and lamps.

What Is Included?

• 50 TL-UL200-CB Old Faithful Classic Brass Spotlights
• 50 TL-GSTAKE2 ground stakes

Not included: MR16 lamps, low-voltage transformer, landscape-lighting cable, and wire connectors.

View the single TL-UL200-CB Old Faithful spotlight

Product Specification Sheet

Open the TL-UL200-CB specification sheet for the individual fixture drawing and additional product details.

View the TL-UL200-CB specification sheet

Frequently Asked Questions

How many spotlights are included in TL-UL200-CB-50?

This bulk package contains 50 TL-UL200-CB Old Faithful Classic Brass Spotlights and 50 TL-GSTAKE2 ground stakes.

Are the MR16 lamps included?

No. Each fixture requires one compatible MR16 bi-pin lamp, sold separately. This allows the brightness, color temperature, and beam spread to be selected for the project.

What transformer is needed for a 50-light system?

The transformer should be sized for the combined wattage of all installed lamps, along with the cable length and layout of the lighting runs. Larger projects may be divided into multiple circuits or zones.

Can I purchase one Old Faithful spotlight instead of the bulk pack?

Yes. The individual TL-UL200-CB Old Faithful Classic Brass Spotlight is available separately for smaller projects, replacements, or additions to an existing system.

Why Choose the 50-Piece Old Faithful Spotlight Pack?

The TL-UL200-CB-50 package provides 50 matching solid brass spotlights and ground stakes for projects that require consistent fixture construction, finish, lamp compatibility, and mounting hardware across a larger lighting layout.
