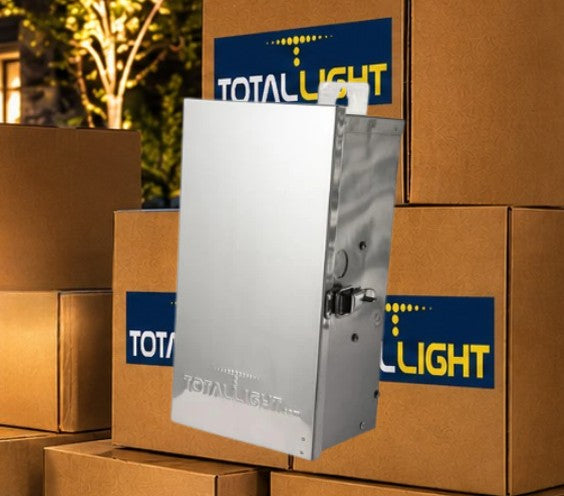

Total Light® 12 Piece-100 Watt Stainless Steel Low Voltage Transformers

Product Overview

The Total Light TL-TRAN100-SS-12 bulk pack includes twelve individual 100-watt low-voltage transformers for contractors, maintenance teams and landscape-lighting professionals who regularly install smaller 12V systems. Each transformer provides multi-tap 12V through 15V output, allowing the installer to select an appropriate output tap when planning cable runs and addressing voltage drop within a properly designed circuit. These are twelve separate transformers for independent projects or lighting zones; the pack is not a single 1,200-watt transformer.

Each unit is housed in a stainless-steel cabinet suitable for indoor or outdoor installation. The enclosure includes a large internal wiring compartment and terminal strip to help organize field connections, plus a quick-mount bracket, pre-scored knockouts and removable bottom panel for installation and service access. A sealed lockable door helps protect the internal wiring and controls. Each transformer also includes a six-foot heavy-duty power cord and a plug-in-ready timing receptacle. Compatible timers or other plug-in timing controls are sold separately.

Built-in protection on every transformer includes a surge suppressor, primary thermal protection and a secondary-side magnetic circuit breaker. Internal wiring is rated up to 125°C, and each unit is ETL certified. Before installation, calculate the connected fixture wattage for each transformer separately, account for cable length, wire gauge and voltage drop, and maintain the operating margin required by the current installation instructions. Current Total Light warranty coverage provides lifetime protection for each stainless-steel cabinet and transformer core, with six-year coverage for connections and electrical components. The bulk configuration helps professionals standardize equipment across repeated installations while keeping matching replacement units available.

Need one transformer? View the single TL-TRAN100-SS 100-watt transformer

Key Features

• Bulk pack of twelve independent 100-watt transformers
• Multi-tap 12V to 15V output range on each unit
• Stainless-steel cabinets for indoor or outdoor installation
• Large internal wiring compartments and terminal strips
• Quick-mount brackets and pre-scored knockouts
• Removable bottom panels for installation and service access
• Sealed lockable doors
• Six-foot heavy-duty power cord on each transformer
• Plug-in-ready timing receptacle on each unit
• Surge suppressor and primary thermal protection
• Secondary-side magnetic circuit breaker
• Internal wiring rated up to 125°C
• ETL certified

Common Uses

• Repeated residential landscape-lighting installations
• Contractor inventory for service and replacement work
• Multiple independent path and garden-lighting systems
• Deck, step and outdoor-living lighting projects
• Accent and architectural lighting zones
• Property-management and maintenance inventories
• Phased installations requiring matching transformer models

Technical Specifications

• Model: TL-TRAN100-SS-12
• Pack Quantity: 12 transformers
• Capacity per Transformer: 100 watts
• Output Voltage Range: 12V to 15V
• Enclosure Material: Stainless steel
• Power Cord Length: 6 feet per transformer
• Timing Control: Plug-in-ready receptacle on each unit; timing devices sold separately
• Internal Wiring Temperature Rating: Up to 125°C
• Protection: Surge suppressor, primary thermal protection and secondary magnetic circuit breaker
• Certification: ETL
• UPC: 810016890867
• Cabinet and Transformer Core Warranty: Lifetime
• Connections and Electrical Components Warranty: 6 years

Dimensions

Refer to the product specification sheet for the current cabinet dimensions, knockout locations and mounting details for each transformer.

System Compatibility

Each TL-TRAN100-SS transformer is designed for compatible 12V low-voltage landscape-lighting fixtures and provides output taps from 12V through 15V. Size and plan each transformer circuit independently using the connected lamp or fixture wattage, cable length, wire gauge, voltage drop and required operating margin. Do not combine the twelve units as though they were one transformer, and do not exceed the limits stated in the current specification sheet and installation instructions.

Installation and Planning Notes

• Calculate the total connected fixture wattage for each transformer and lighting zone separately.
• Account for cable length, wire gauge and voltage drop when choosing the appropriate output tap.
• Mount each transformer in an accessible location using its quick-mount bracket and approved attachment hardware.
• Keep each sealed door accessible for wiring, breaker reset, timing-control changes and future service.
• Use the pre-scored knockouts and removable bottom panels according to the installation instructions.
• Use outdoor-rated low-voltage cable and connectors suitable for the installation environment.
• Select compatible plug-in timing controls separately when automatic scheduling is required.
• Review the specification sheet and follow applicable electrical and building requirements.

What Is Included

• Twelve Total Light TL-TRAN100-SS 100-watt transformers
• Twelve stainless-steel enclosures with sealed lockable doors
• Twelve quick-mount brackets
• Twelve six-foot heavy-duty power cords
• Internal terminal strips and protective components in each transformer

What Is Not Included

• Plug-in timers or other timing controls
• Landscape-lighting fixtures and lamps
• Main low-voltage cable
• Wire connectors
• Project-specific mounting hardware

Product Specification Sheet

Frequently Asked Questions

Does this pack contain one large transformer or twelve separate transformers?

It contains twelve separate TL-TRAN100-SS transformers. Each unit is rated for 100 watts and should be planned, wired and operated as an independent transformer and lighting circuit.

How much landscape lighting can each transformer support?

Each transformer is rated for 100 watts, but the usable project load must account for the required capacity margin, cable length, voltage drop and current installation instructions. Add the wattage of every connected fixture on each circuit before installation.

Are timers included with the bulk pack?

No. Each transformer includes a plug-in-ready timing receptacle, but compatible timers or other timing controls are sold separately.

Can these transformers be installed outdoors?

The stainless-steel cabinets are designed for indoor or outdoor use. Install every unit in an accessible location and follow the current specification sheet, electrical requirements and mounting instructions.

Why Choose the Bulk Pack?

The TL-TRAN100-SS-12 bulk pack gives professional installers twelve matching 100-watt transformers for repeated projects, phased installations and service inventory. Standardizing on the same transformer model simplifies planning, replacement and technician familiarity while the multi-tap outputs, accessible stainless-steel cabinets and built-in protective components support smaller low-voltage landscape-lighting systems across multiple independent locations.
